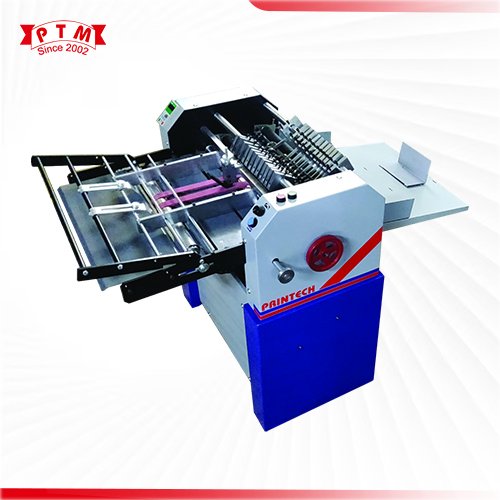

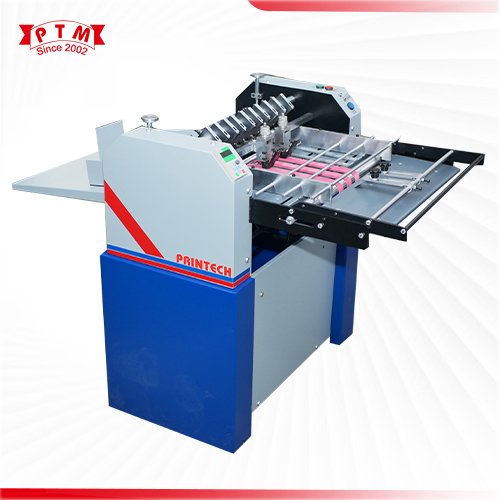

Automatic Friction Feeder (Single Unit)
Upgrade your production line with the efficiency and precision of our Automatic Friction Feeder Single Unit. Designed for high-speed and accurate feeding of flat products such as paper, cardboard, envelopes, and similar items, this state-of-the-art machine ensures seamless operation and minimal downtime.
Features
- Feed and Discharge Rubber Roller Mechanism.
- Simple Operating Training gives Mass production.
- Designed to Portable and Compact.
- Suitable for Micro perforation, Creasing & Sticker Half Cutting.
- Additional Spine Creasing by Male & Female in Min. 3 mm
- Friction Feeding for all kinds of Papers & Boards in any GSM Can be adjusted according to stock thickness.
- Rotary cutters can be adjusted individual and precisely.
- Provided Micro Adjustment side Lay.
- Max. Paper Size 18" x 23" & Min. 6" x 6"
- Low Power Consumption.
- Counting Option Available.
Technical Sepcification
| Model | AC-23 | AC-27 | AC-32 | AC-44 |
| Machine Sizes | 23" x 23" Inches | 27" x 27" Inches | 30" x 30" Inches | 44" x 44" Inches |
| Dimension | L54" x W36" x H42" | L54" x W40" x H42" | L54" x W45" x H42" | L84" x W65" x H42" |
| No. of Cutter | 10 Nos | 10 Nos | 10 Nos | 6 Nos |
| 4 Line Creasing | 4 Nos | 4 Nos | 4 Nos | Nil |
| Minimum Gap | 16 mm | 16 mm | 16 mm | 16 mm |
| Minimum GSM | 45 GSM | 45 GSM | 45 GSM | 80 GSM |
| Maximum GSM | 400 GSM | 400 GSM | 400 GSM | 400 GSM |
| Nett Weight | 250 Kgs | 280 Kgs | 300 Kgs | 350 Kgs |
| Power | 1 HP / 1ø / 50 Hz | 1 HP / 1ø / 50 Hz | 1 HP / 1ø / 50 Hz | 1 HP / 1ø / 50 Hz |
| Speed | Variable Speed | Variable Speed | Variable Speed | Variable Speed |
