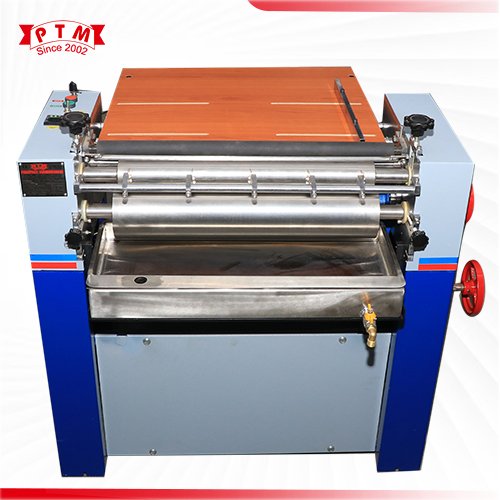

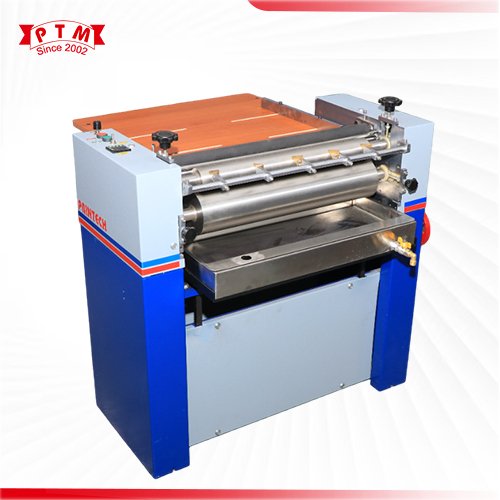

Gluing Machine is designed to applying in full area of any adhesive to paper, cardboard and similar materials. The material to be glued is feed automatically from the feed table and feed in to the rollers. It is guidedover the gluing roller and is glued from beneath. It is then picked up manually from the conveyor.

Salient Features

  • Compatible with Both Hot and Cold Gum.
  • Bronze Knife Provided for Removing Material from the Roller.
  • Adjustable Tank Height and Easily Detachable Tanks.
  • Gum Coating Thickness Can Be Adjusted.
  • Easy to clean & remove the rollers & tanks.
  • Provided Stainless Steel material of Rollers & tanks.
  • Max. Paper Size 18" x 23 & Min. 4" x 4".
  • Counting Option Available.
  • Usage Application Paper, Pad and Cardboard.
Get Quote

Technical Sepcification

Paper Size Max. 20" 25" 30"
Nett Weight 150 Kgs 200 Kgs 250 Kgs
Power 0.5 Hp 0.5 Hp 0.5 Hp
Max. Speed Variable Speed Variable Speed Variable Speed
Heater 2000 Watts / Single Phase 2000 Watts / Single Phase 2000 Watts / Single Phase
Temperature Adjusted Adjusted Adjusted
