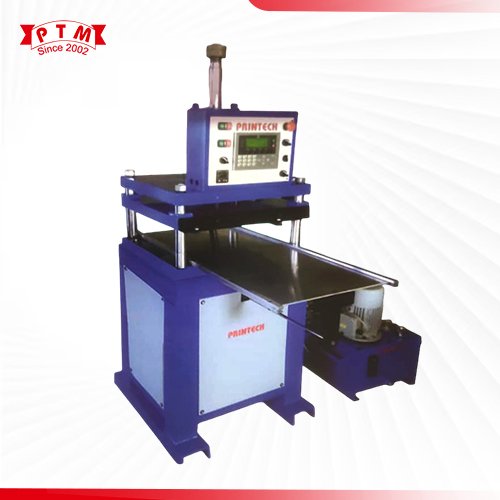

Die Punching Machine
The Machine is multi purpose by using various operations & easy to operate even by newer with very low maintanence cost, accreted, fast & easy to handling. The machine is smooth and low noise operation with easy to make ready & mass production with simple operation.
Purposes
- Die Cutting
- Creasing
- Scratch Cards
- Embossing
- Sticker Half Cutting
- Envelope Die Cutting
Technical Sepcification
| Model | FD-300 | FD-450 |
| Operation Mode | Touch Based PLC | Touch Based PLC |
| Tonnage | Upto 8 Ton | Upto 15 Ton |
| Working Table Size | 15" x 20" Inches | 18" x 23" Inches |
| Nett Weight | 900 Kgs | 1100 Kgs |
| Die Type | Any | Any |
| Feeding | Pneumatic | Pneumatic |
| Motor | 3 Hp / 3 Phase. | 3 Hp / 3 Phase. |
