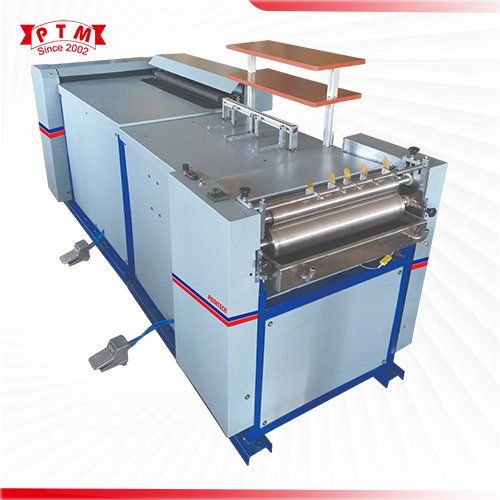

Semi Automatic Case Making Machine
This Semi Automatic Case Maker is Designed to be Operate by one or two People and is Ideally Designed for short Run job Designed for short run jobs. It is possible to glue with hot melting or cold vinyl glues, Allowing the Application of a case linking in a second-pass Operation suitable for Production of Book cases, Ring files, Box files, Tabletop Calenders, Game-Boards,Puzzle Boards etc.
Features
- Easy mounting & dismounting of glue tank.
- Easy and rapidly adjustable gauging system.
- PLC based control system.
- Multiple glue tank for different glue (optional).
- Uniform thickness of glue layer on title sheet with easy adjust control.
- Counting Option Available.
Technical Sepcification
| Model | CS-25 |
| Min. Case Size | 150 mm x 150 mm |
| Min. Case Size | 420 mm x 700 mm |
| Dimensions | H 1025 mm x L2700 mm x W900mm |
| Paper Thickness | 60 gsm x 170 gsm |
| Weight | 750 Kgs |
| Board Thickness | 1 mm x 6 mm |
| Gluing System | Bottom |
| Turning in Width | 15 mm x 30 mm |
| Man Power | Two |
| Materials | paper, Laminated Paper, Plastic Coated Paper, Cloth etc.., |
| Glue | Hot / Cold (Optional) |
